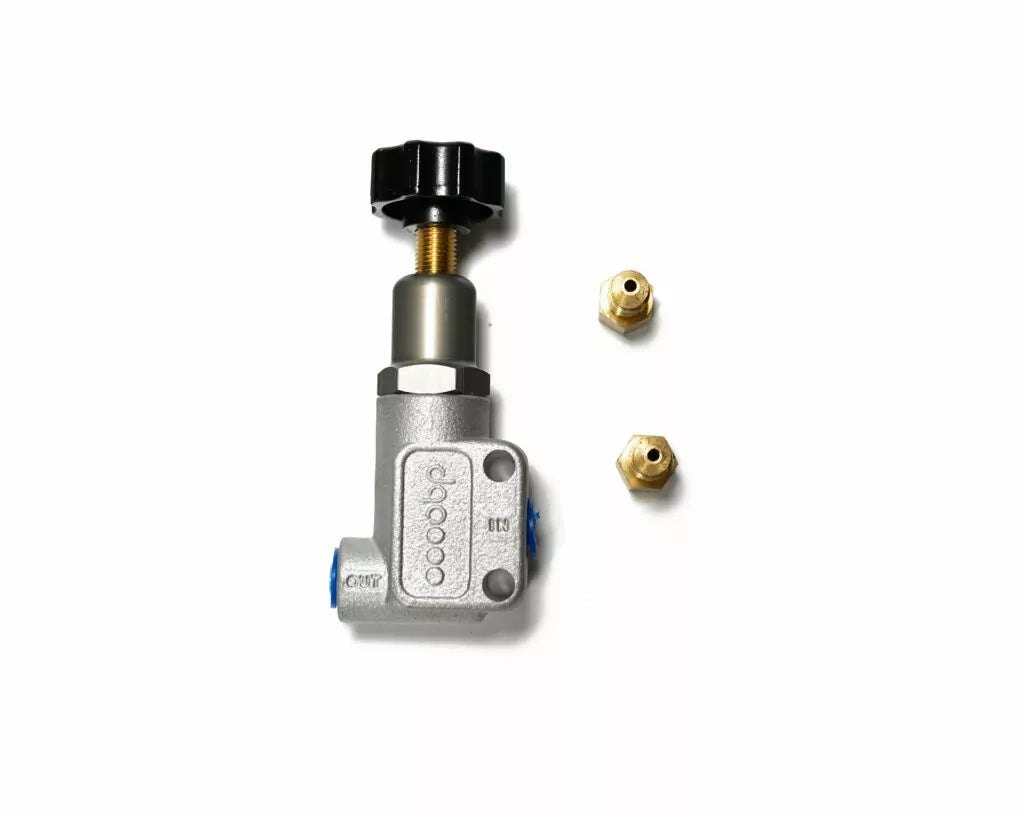

OBP Screw Type Bias Valve

Screw Type Brake Bias Valve with 3/8 UNF Female Outlets (M10x1 Adaptors Included).

Part Number : OBPCB012

What is a Bias Proportioning Valve?

A Bias Proportioning Valve (or more commonly known as a Bias Valve) is a small compact hydraulic component that enables you to adjust the brake pressure to a particular area.

The bias valve comes into action when operating at a high pressure and once adjusted to your desired position. For example, when left neutral the component works at a 1:1 ratio meaning the pressure entering and leaving the bias valve is equal. However, when you adjust the knobs on the bias valve, it allows you to control how much pressure exits the bias valve.

We have either a lever type or screw type bias valves available with either having their own benefits, the screw type bias valves allow you to finer tune the adjustment whereas the lever type is a 7 click adjustment.

Product Information:

• Machined from T6061 Aluminium
• Supports Pressure of 16MPA (2,175 PSI)
• 3/8″ UNF (AN3) Ports
• M10x1 Adaptors Included
