OBP Racing Series Floor Mounted Bulkhead Fit Pedal System

Racing Series – Our flagship range of motorsport components.

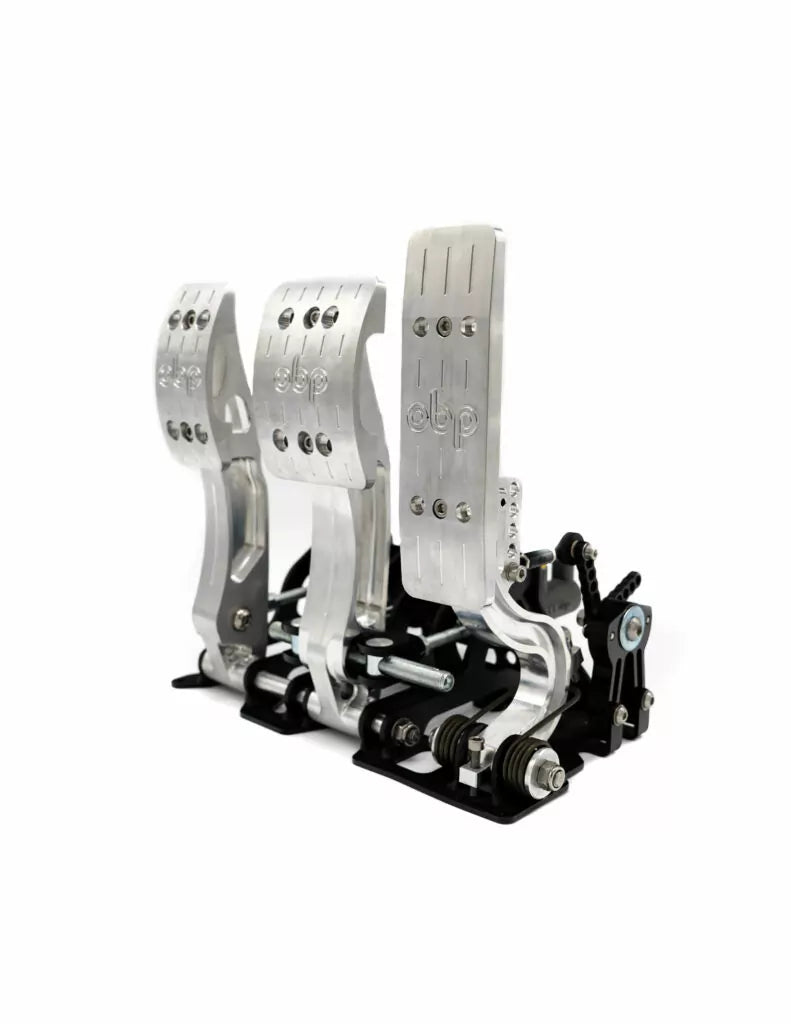

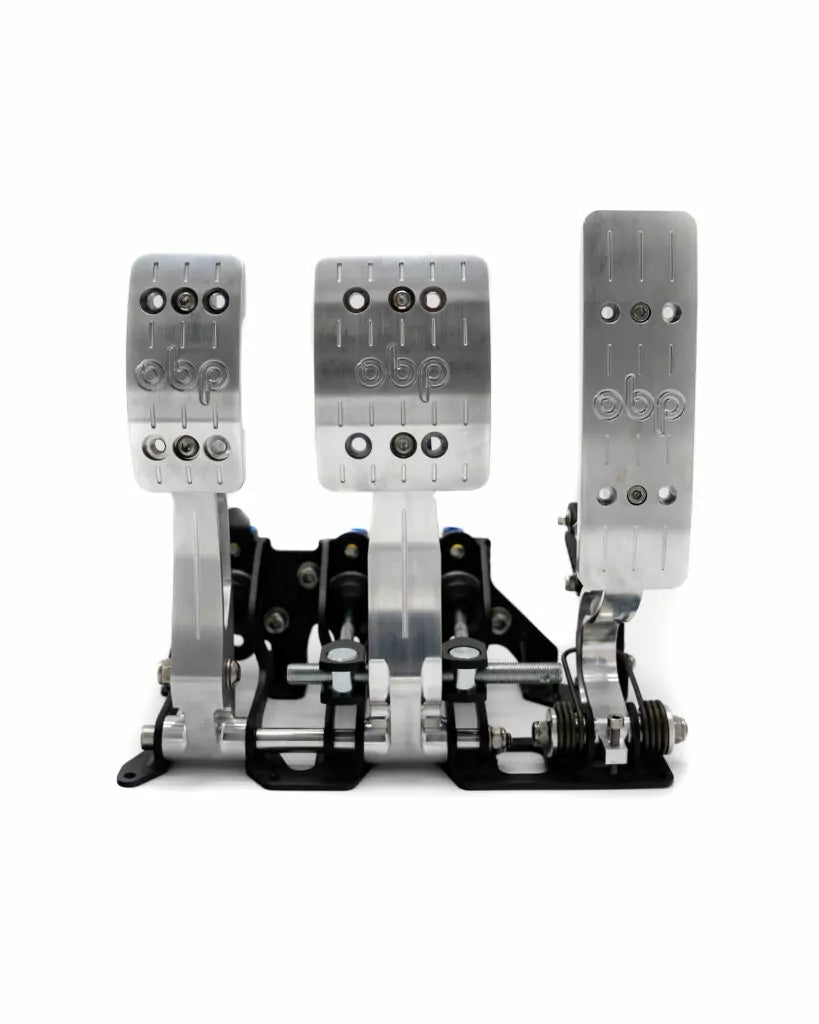

Sliver Pedals – OBP-RS-002

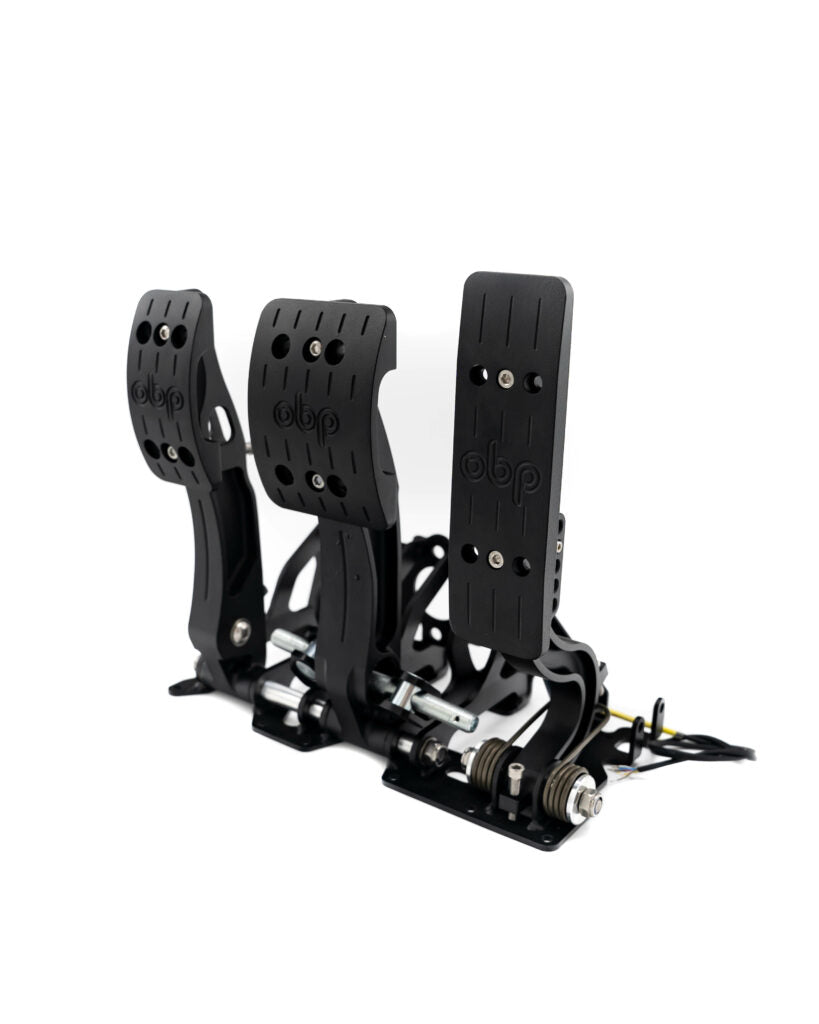

Black Pedals – OBP-RS-002B

With the highest level of engineering comes the brand new range ‘Racing Series’, with this pedal system being the first in the range, aimed at the motorsport enthusiasts who are wanting the optimum pedal system in terms of maximum braking performance and weight reduction.

Using topology optimisation and Finite Element Analysis we have produced the most efficient design possible creating a product that is significantly stiffer without adding any mass.

Our lightweight range dual brake master cylinder bias controlled pedal boxes have been designed to offer the driver the highest level of efficiency in this critical area. The CNC Machined Pedals, together with low friction and high-quality oil impregnated spherical bearings set new standards in pedal box design. The pedal pads are also CNC Machined Billet aluminium which can be adjusted in multiple positions to allow the driver to have different pedal ratio options and also comfort.

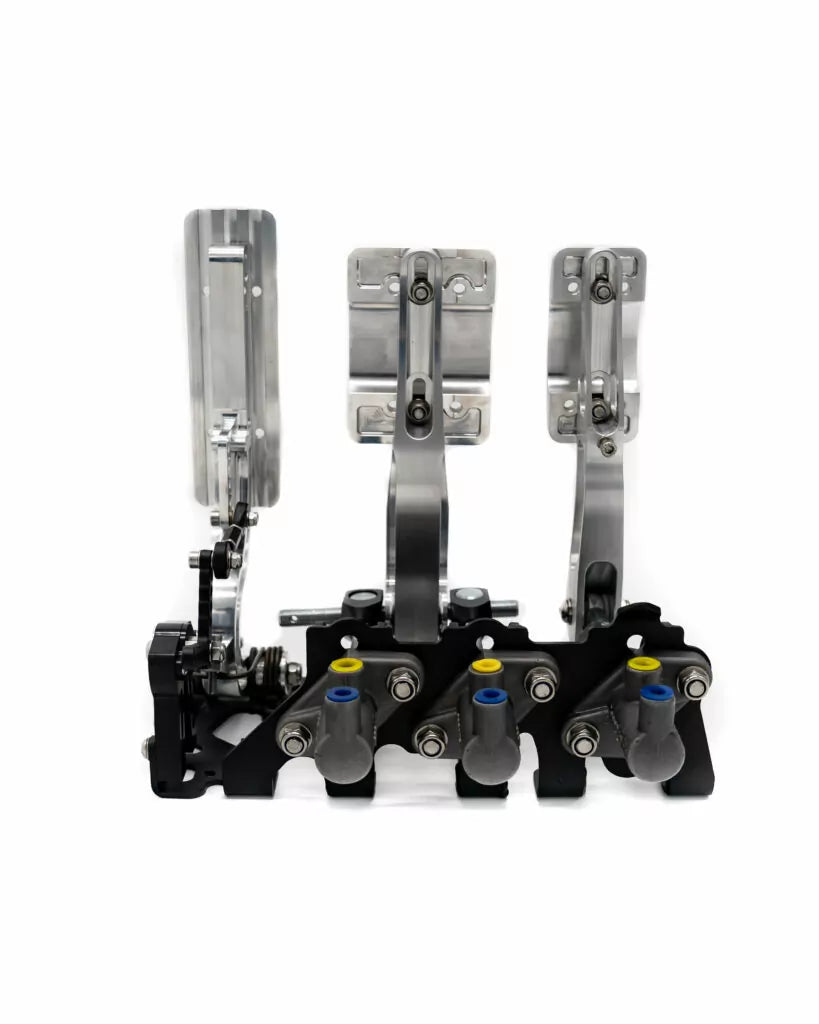

The base box frame has been developed out of 3mm Mild Steel to provide an improved robustness and strength which is designed to mount up against the bulkhead to provide further support. On the rear of the frame, it has 3 x mounting points for your brake master cylinders (will fit the majority of master cylinders on the market).

The Accelerator Pedal is equipped with two throttle stops that can be adjusted to suit your pedal throw and also a sensitive return spring. On the rear of the pedal, it has the throttle cable linkage installed as standard although it is also Drive By Wire (DBW) Compatible. Simply remove the linkage and replace with a Linear Potentiometer.

We have designed this pedal system based on customers feedback of the popular PRO-RACE V2,  below is a summary to give you an insight on these improvements:

It also maintains all the features and adjustability of the V2 PRO-RACE systems:

• Universal Fit
• Aircraft Grade T6061 Aluminium Pedals for maximum weight savings
• Multiple Pedal Pad Adjustment
• Works with vertical or offset flange master cylinders
• Adjustable Pedal Ratios
• Adjustable Accelerator Return
• Throttle pedal works with linear potentiometer or cable actuation (sold seperately)
• 2 years warranty
• UK Manufactured by our skilled engineers
• Fitment: Bulkhead Fit
• Pedal Ratio: 4.9:1 / 5.24:1
• Weight: 2.7kg
• Bias Bar Included
•

  2 Year Warranty



  British Engineering

• 15% Lighter
• 60% More Rigid
• Significantly Increased Max Load capability
• Reduced frictional losses in the brake pedal
• Significantly increased durabilty and resistance to side loading on the throttle pedal
• Available in Silver & Black (Dark Matter Textured Finish)
